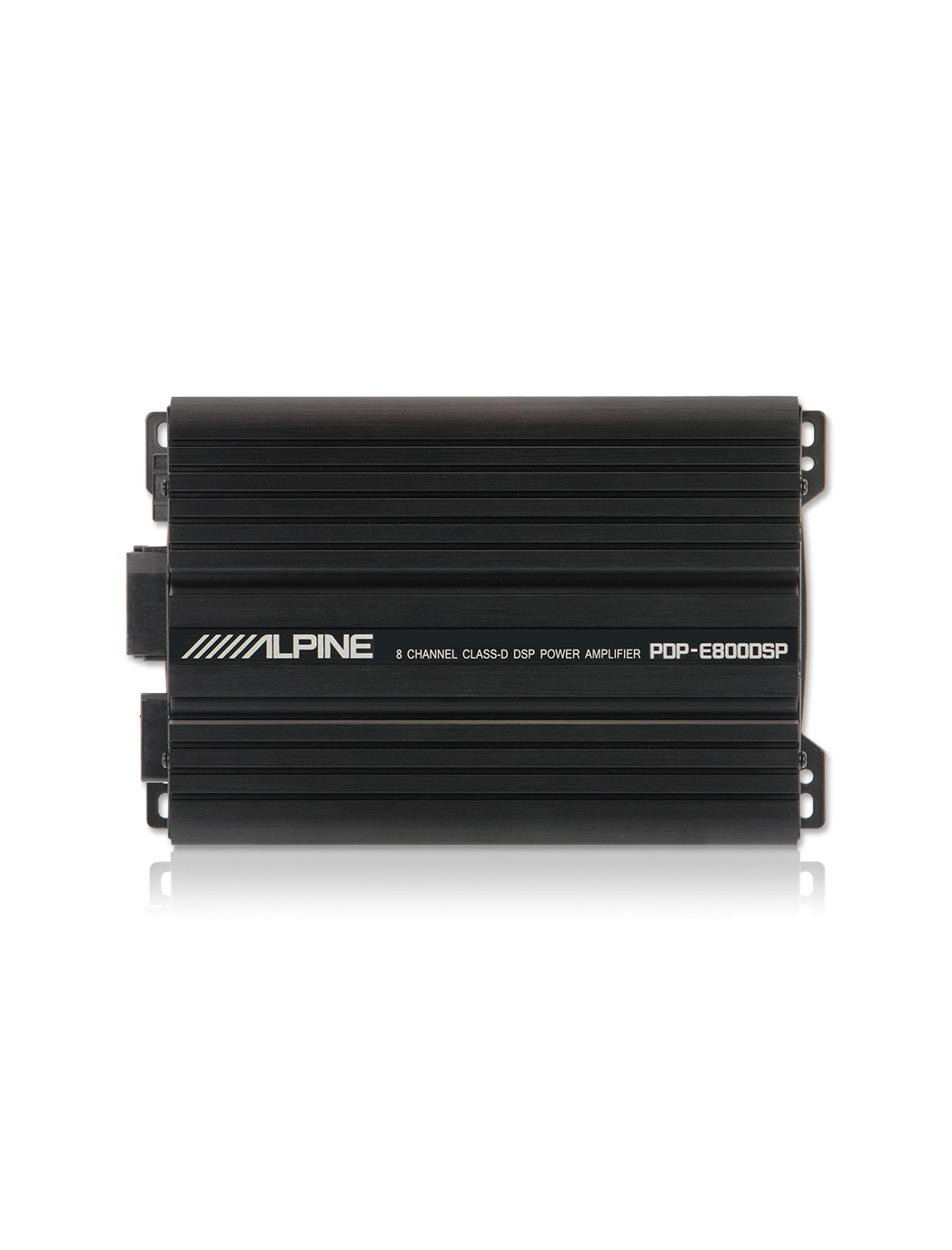

PDP-E800DSP

HIGH POWER (700W) : 8 CHANNEL DSP AMPLIFIER

Alpine introduces the all-new PDP-E800DSP Digital DSP amplifier. This amazing all-in-one solution allows sound upgrading for virtually any vehicle with its incredible versatility and connectivity options.

Featuring 6 input channels (both pre-amp and speaker level), as well as up to 8 fully configurable output channels allow for a very wide range of system applications and flexibility. Tune your sound with a professional 240-band Parametric EQ, 8 channel digital time correction, as well as a 8 channel digital crossover.

Highest connection versatility and flexibility

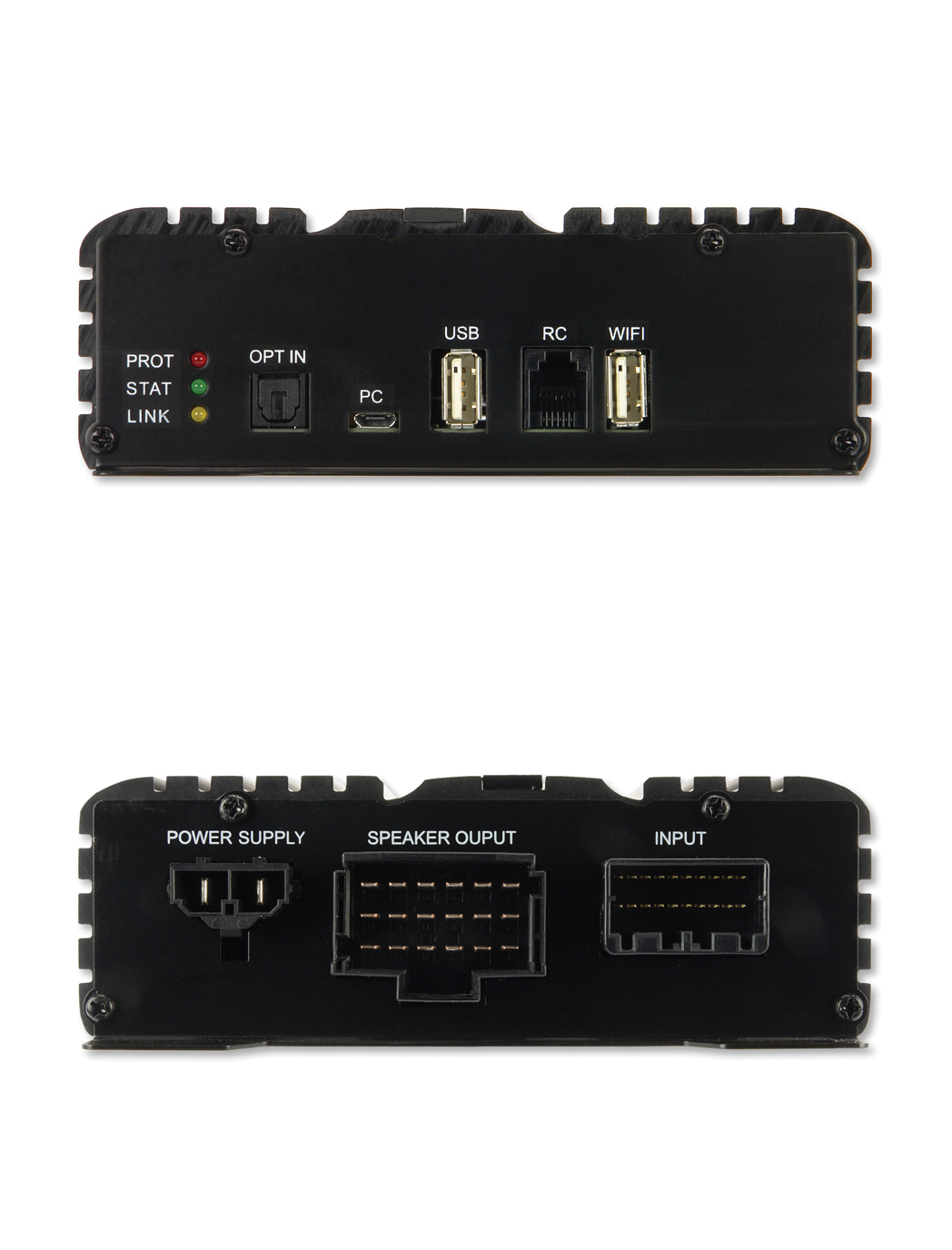

The PDP-E800DSP is extremely versatile and flexible- it can be added-on to virtually any factory or aftermarket car entertainment system to build the sound system you require. Connect the DSP amp to your factory system throught the 6-channel speaker-level inputs with remote sensing, or alternatively, use the 6-channel pre-amp input (RCA). There is also an Optical input (max 24bit/96kHz) to connect additional sources.

Extensive sound tuning options

With the Alpine DSP amp, you get a professional sound studio out of the box : a 240-band Parametric EQ (30-bands per channel) lets you adjust the sound in great detail. You also get 8-channel digital time correction and an 8-channel digital crossover for perfect channel set up. Free analog routing allows you for example, to summarize several channels to create a center channel.

Extensive sound tuning options

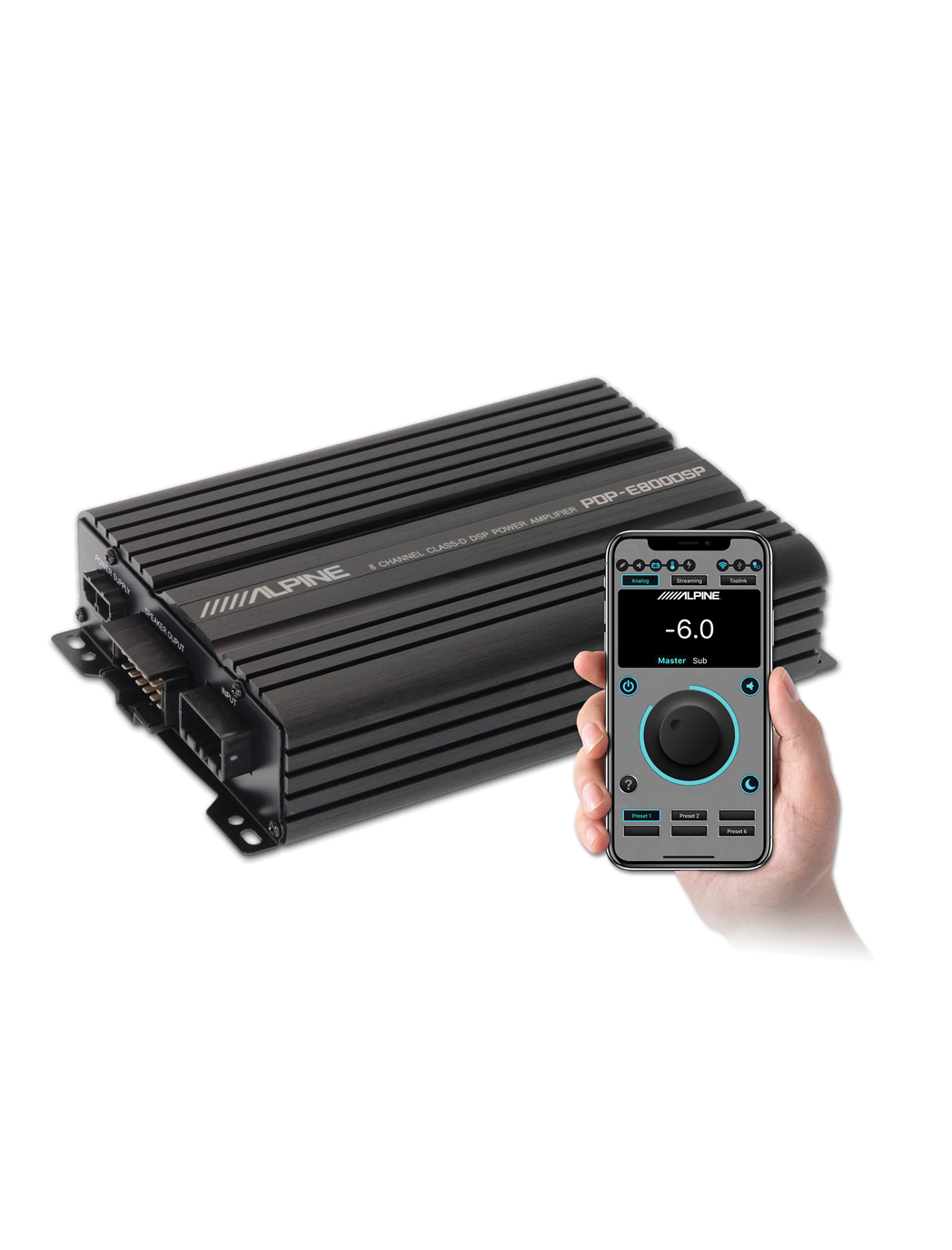

Wireless system control

Download the Alpine Remote Control App for your iPhone or Andriod smartphone to control all key functions on the go : select input sources, adjust the system master volume and the subwoofer level, select sound pre-sets and more – there is even a day and night mode. The app is a free download from the Google Play store or the Apple app store.

Bass Knob compatible

You can use the optionally available Alpine RUX-KNOB2 to control the subwoofer level or the master volume of your PDP-E800DSP. This inexpensive accessory can be easily installed somewhere in the dashboard to give you quick access to your subwoofer’s output or system’s master volume.

Bass Knob compatible

Sound tuning application

You can download "Tunelt app" via App store or Google play by searching or scan this QRcode.

General

8-Channel DSP Amplifier
Class D
ADCs by Burr Brown
Remote app for iOS and Android with basic control functions (Master level, Sub level, Preset recall, source selection)
Alpine RUX-KNOB2 ready (master volume or sub level)

Frequency response
