Alpine Expands the Halo Family to Offer Complete Sound System Solutions

May 18, 2020


Alpine will launch a new sound system lineup for the Halo category that includes a 10-inch and 12-inch ported subwoofer enclosure and remote bass knob. The enclosures are pre-loaded with S-Series and R-Series subwoofers.



Unique to Alpine, the subwoofer 10-inch and 12-inch enclosures are available as a single or “linked” format with an optional mounting bracket. This innovative design allows the sound consumer the option to easily add more bass to their system.  The ported enclosure design delivers a higher total sound output for deep, powerful bass, reliable sound reproduction and overall great sound quality. The 10-inch enclosure is tuned to 36 Hz while the 12-inch enclosure is tuned to 35 Hz for optimized performance with Alpine’s S-and-R-Series subwoofers



S-SB10V Pre-Loaded S-Series 10-inch Subwoofer Enclosure

  • Includes S-W10D4 wired in parallel
  • 600W RMS power handling
  • 2Ω Impedance
  • Ported enclosure design
  • Frequency response: 28-200 Hz
  • Vented enclosure tuning frequency: 36 Hz
  • Dimensions 16-inch W x 12.6825-inch H x 14.5-inch D



S-SB12V Pre-Loaded S-Series 12-inch Subwoofer Enclosure

  • Includes S-W12D4 wired in parallel
  • 600W RMS power handling
  • 2Ω Impedance
  • Ported enclosure design
  • Frequency response: 26-200 Hz
  • Vented enclosure tuning frequency: 35 Hz
  • Dimensions 17-inch W x 14.625-inch H X 15-inch D



R-SB10V Pre-Loaded R-Series 10-inch Subwoofer Enclosure

  • Includes R-W10D4 wired in parallel
  • 750W RMS power handling
  • 2Ω Impedance
  • Ported enclosure design
  • Frequency response: 26-200 Hz
  • Vented enclosure tuning frequency: 36 Hz
  • Dimensions 16-inch W x 12.6825-inch H x 14.5-inch D

 R-SB12V Pre-Loaded R-Series 12-inch Subwoofer Enclosure

  • Includes R-W12D4 wired in parallel
  • 750W RMS power handling
  • 2Ω Impedance
  • Ported enclosure design
  • Frequency response: 24-200 Hz
  • Vent tuning frequency: 35 Hz
  • Dimensions 17-inch W x 14.625 H x 15-inchD

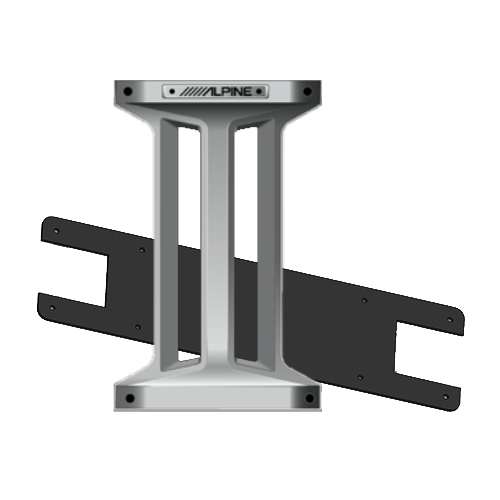

KTX-H10 Linking Kit for Two 10-inch Subwoofer Enclosures

  • Aluminum rear link plate
  • 10-inchFront ABS / Steel reinforced port link
  • Center link stabilizing dowels
  • Alpine port logo plate

KTX-H12 Linking Kit for Two 12-inch Subwoofer Enclosures

  • Aluminum rear link plate
  • 12-inch Front ABS / Steel reinforced port link
  • Center link stabilizing dowels
  • Alpine logo plate





RUX-H01 Alpine Halo Remote Bass Knob

  • Remote level controller for Alpine amplifiers X/R/S series
  • Adjusts gain from 0 to -12 dB
  • Multi-amp capable (standard phone cable splitter required – not included)



NEW KTA-200M Mono 400-Watt DDP Power Pack Amplifier with PowerStack

  • · PowerStack capable with the Alpine iLX-W650E
  • · Alpine’s Class D Amplifier Circuit w/ Dynamic Peak Power (DPP)
  • · 100W x 1 RMS (4Ω, 14.4V, ≤1% THD+N)
  • · 200W x 1 RMS (2Ω, 14.4V, ≤1% THD+N)
  • · 400W x 1 DPP (2Ω, 14.4V, ≤1% THD+N)
  • · >85dB S/N (ref. 1W into 4Ω)
  • · ≤0.1% THD+N (ref. 10W into 2Ω)
  • · Single-side 22-pin connector
  • · RCA inputs (selectable, Low range=0.2-4V)
  • · Sound controls; Crossovers-Off/60Hz/80Hz/120Hz Linkwitz Riley LP Filter @ -24dB/Oct. (selectable); Input gain setting (variable)
