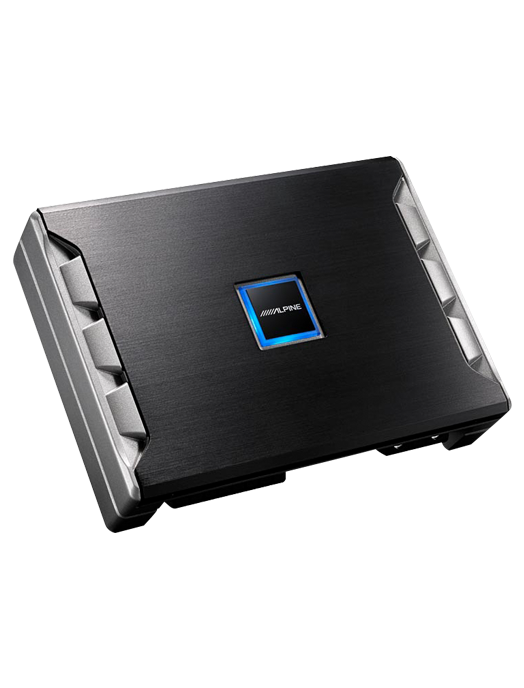

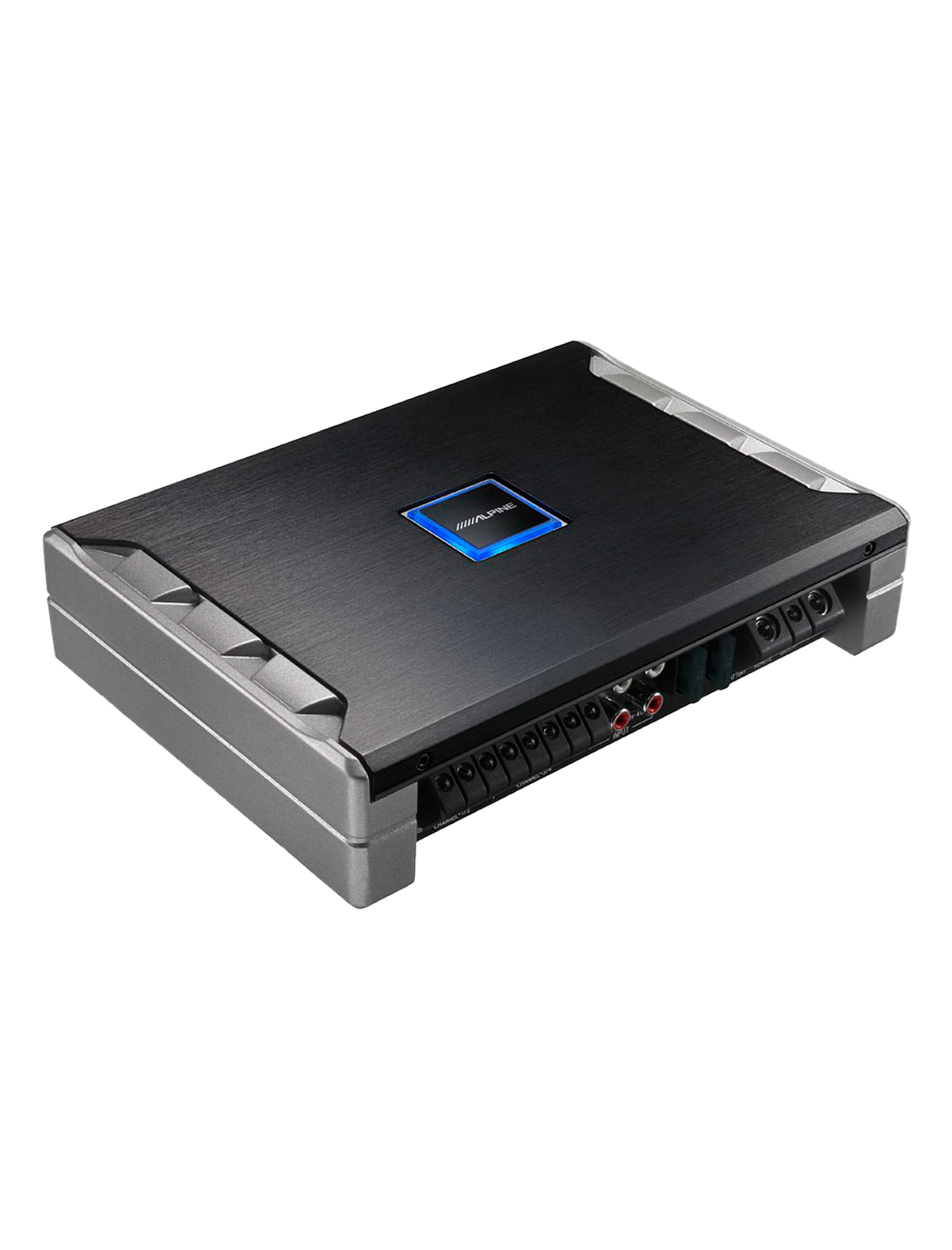

PDR-F50

4/3/2 CHANNEL DIGITAL POWER AMPLIFIER.

The PDR-Power amplifiers offer the best performance in their class, redefining expectations in the high-power compact amplifier category. Thanks to trickle-down technology, our in-house engineering team has taken many of the patent-pending technologies introduced in the industry-leading PDX series and infused them in the new PDR-Power amplifiers. The PDR-Power amps provide you with the absolute widest bandwidth, best signal-to-noise, lowest distortion and highest damping factor of any amplifier in their class without sacrificing power.

Awesome Power Density, Digital Sound Quality

Each PDR amp is unmatched in its class for power density performance (watts per cubic cm) and damping factor. You get tremendous power at all levels, with hardhitting bass. S/N ratios and frequency response are also outstanding.

Awesome Power Density, Digital Sound Quality

Each PDR amp is unmatched in its class for power density performance (watts per cubic cm) and damping factor. You get tremendous power at all levels, with hardhitting bass. S/N ratios and frequency response are also outstanding.

Proven Power - Certified from Birth

All PDR-Power amplifiers are individually tested and have certified power ratings. Each amp comes with their very own verification certificate documenting its actual power output exceeds the rating by a wide margin.

Proven Power - Certified from Birth

All PDR-Power amplifiers are individually tested and have certified power ratings. Each amp comes with their very own verification certificate documenting its actual power output exceeds the rating by a wide margin.

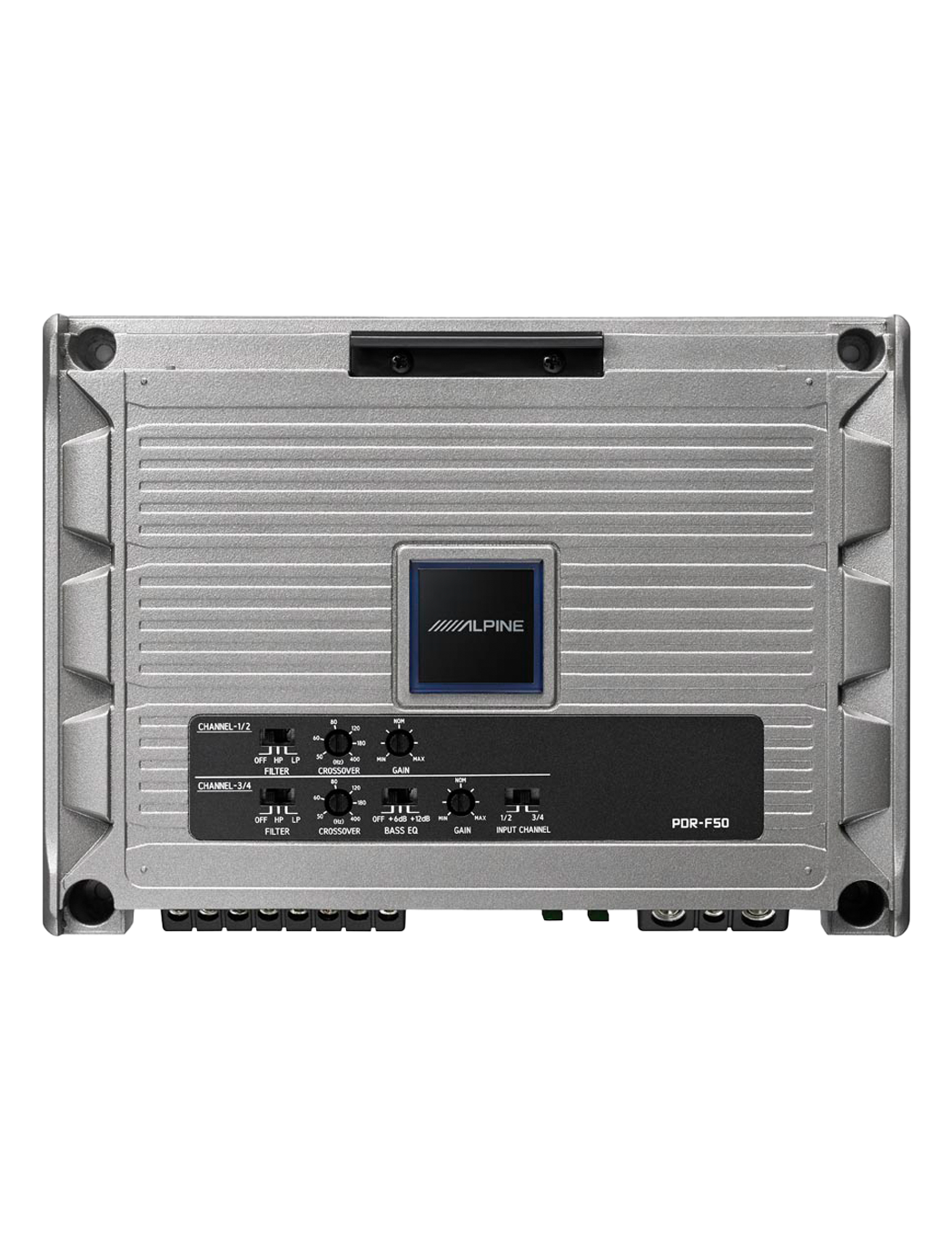

Topside Controls and Adjustments

Topside controls on top of the PDR-Power amplifiers make installation and tuning easier than its predecessors. Just unscrew two fasteners and you’ll have access to all the controls needed to tune the amplifier. Their small size and versatile controls allow the PDR-Power amplifiers to easily be added to either an aftermarket or factory system and can be setup to accommodate a variety of system configurations.

Topside Controls and Adjustments

Topside controls on top of the PDR-Power amplifiers make installation and tuning easier than its predecessors. Just unscrew two fasteners and you’ll have access to all the controls needed to tune the amplifier. Their small size and versatile controls allow the PDR-Power amplifiers to easily be added to either an aftermarket or factory system and can be setup to accommodate a variety of system configurations.

 Type

  • Class D
  • 4/3/2 Channel

 Frequency response

  •  8 – 45KHz

 Power handling

  • 1000 watts max power
  • 4 x 85 watts RMS power at 4 Ohms
  • 4 x 125 watts RMS power at 2 Ohms
  • 2 x 250 watts Bridged power at 4 Ohms

 Design

  • Thermal protection
  • Current protection
  • Crossover adjustable : 50 - 400Hz (-12 dB/oct)

 Dimension

  •  228.5 x 165 x 50.8 mm
